Description

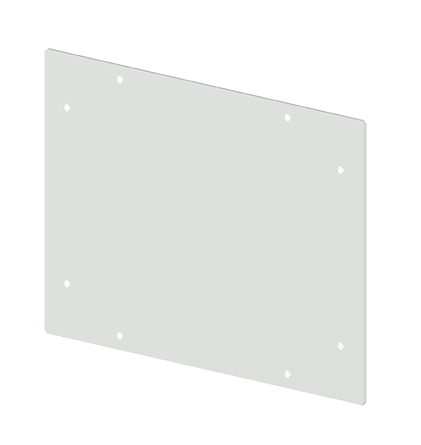

Replacement Front Plate for Concept HMI, fits 420x450mm, Lt Gray, Aluminum
- Includes mounting instruction and hardware
PRODUCT ATTRIBUTES
- Height: 16.73 in / 425 mm
- Width: 18.15 in / 461 mm
- Depth: 0.13 in / 3 mm
- Material: Aluminum
- Fits Enclosure: 16.73 x 17.72 in / 425 x 450 mm
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 0.125 in / 3 mm
- Weight: 5.9 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Replacement Front Plate that makes it easy to install HMI components and the ability to accommodate cutouts anywhere on the enclosure. Includes mounting instruction and hardware.
BULLETIN NUMBER
C2
