Product Overview

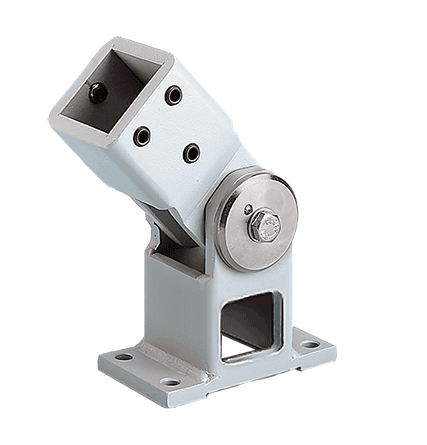

Compact Series 4 Wall Joint, fits 80x80mm, Lt Gray, Steel
- Adjustable tension at pivot point
- Bellows with zipper, gasket and set screws are included
- Rotation limiter is optional and can be purchased separately
- Surface mounting fasteners are not provided
PRODUCT ATTRIBUTES
- Height: 3.15 in / 80 mm
- Width: 3.15 in / 80 mm
- Material: Mild Steel
- System: 80
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 0.47 in / 12 mm
- Weight: 20.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Compact Series 4 Wall Joint mounts the suspension system to a vertical surface, allowing the tube to extend horizontally. Swivel range approximately 180 degrees.
BULLETIN NUMBER
CS4
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
