Product Overview

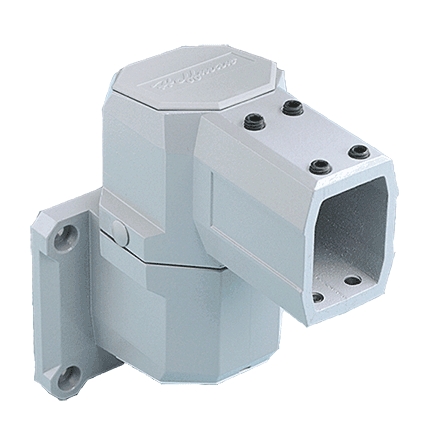

Compact Series 2 Wall Joint Horizontal, fits 45x60mm, Lt Gray, Aluminum
- Set screws and gasket are included
- Surface mounting fasteners are not provided
PRODUCT ATTRIBUTES
- Height: 1.77 in / 45 mm
- Width: 2.36 in / 60 mm
- Material: Aluminum
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Weight: 4.8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Compact Series 2 Horizontal Wall Joint mounts the suspension system to a vertical surface, allowing the tube to extend horizontally. Arm can be rotated or turned 300 degrees. Includes access plates for easy wire installation.
BULLETIN NUMBER
CS4
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
