Description

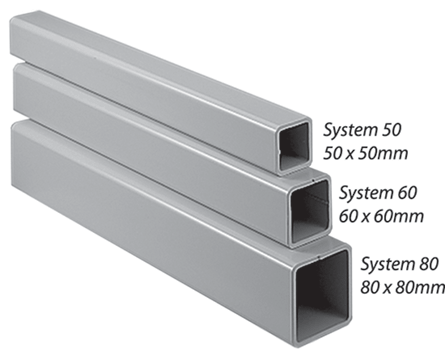

Compact Series 4 Tube, 489x80x80mm, Lt Gray, Steel
- Square and rectangular tubes are cold-formed, hollow, welded steel with 5-mm wall thickness available in various lengths
- Connection components fastened to support arm with set screws
PRODUCT ATTRIBUTES
- Height: 3.15 in / 80 mm
- Width: 3.15 in / 80 mm
- Depth: 19.69 in / 500 mm
- Protection Rating: IP55
- Material: Mild Steel
- Size: 3.10 x 3.10 in / 80 x 80 mm
- System: 80
- External Dimensions: 3.15 in / 80 sq. mm
- Length: 489 mm / 19.25 in
- Inside Cross Section: 49 cm² / 7.6 in²
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 0.19 in / 4.8 mm
- Weight: 11.7 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Compact Series 4 Tube provides structural integrity and acts as a conduit for equipment wiring. All pendant arm connections are sized to fit appropriate tube sizes.
BULLETIN NUMBER
CS4
