Description

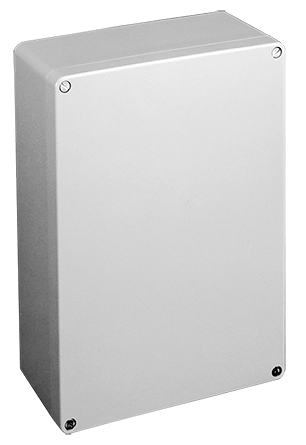

Compact Series Enclosure Type 4X, 330x230x180mm, Gray, Aluminum
- Cast Aluminum material
- No welded seams or sharp corners
- Stainless steel captivated cover screws placed outside sealed area
- Two to four grounding screws located on enclosure back wall
- Oil-resistant, seamless foam-in-place gasket
- Tongue-and-groove sealing construction
- Threaded internal bosses provided for mounting optional panels, rails and other components
- Mounting holes provided in corners outside of gasketed area
PRODUCT ATTRIBUTES
- Height: 12.99 in / 330 mm
- Width: 9.06 in / 230 mm
- Depth: 7.09 in / 180 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
- Material: Aluminum
- External Dimensions: 330 x 230 mm / 12.99 x 9.06 in
- Conductive Panel: CCAP3323
- Panel Size: 315 x 215 mm / 12.41 x 8.47 in
- Mounting: 180 x 310 mm / 7.09 x 12.21 in
- Color: Traffic Gray
- Color Code: RAL 7042
- Finish: Powder Coated
- Thickness: 0.16 in / 2 mm
- Weight: 10.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
For use in indoor or outdoor applications, these enclosures protect components and controls in corrosive environments.
A x B x C are internal dimensions.
Purchase panels separately
CCA886, CCA1286 and CCA1886 enclosures have only two mounting holes.
BULLETIN NUMBER
CA1
INDUSTRY STANDARDS
UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
NEMA/EEMAC Type 4, 4X, 12, 13
CSA File No. 42186: Type 4, 4X, 12, 13
IEC 60529, IP66
