Product Overview

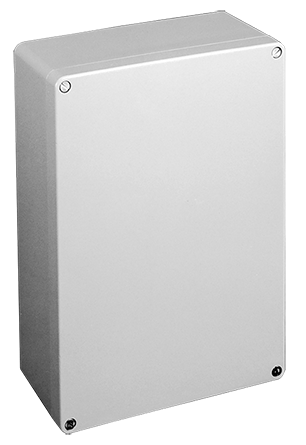

Compact Series Enclosure Type 4X, 220x122x80mm, Gray, Aluminum
- Cast Aluminum material
- No welded seams or sharp corners
- Stainless steel captivated cover screws placed outside sealed area
- Two to four grounding screws located on enclosure back wall
- Oil-resistant, seamless foam-in-place gasket
- Tongue-and-groove sealing construction
- Threaded internal bosses provided for mounting optional panels, rails and other components
- Mounting holes provided in corners outside of gasketed area
PRODUCT ATTRIBUTES
- Height: 8.66 in / 220 mm
- Width: 4.72 in / 120 mm
- Depth: 3.15 in / 80 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
- Material: Aluminum
- External Dimensions: 220 x 122 mm / 8.66 x 4.80 in
- Conductive Panel: CCAP2212
- Panel Size: 204 x 108 mm / 8.04 x 4.26 in
- Mounting: 82 x 204 mm / 3.23 x 8.03 in
- Color: Traffic Gray
- Color Code: RAL 7042
- Finish: Powder Coated
- Thickness: 0.16 in / 2 mm
- Weight: 2.9 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
For use in indoor or outdoor applications, these enclosures protect components and controls in corrosive environments.
A x B x C are internal dimensions.
Purchase panels separately
CCA886, CCA1286 and CCA1886 enclosures have only two mounting holes.
BULLETIN NUMBER
CA1
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
