Product Overview

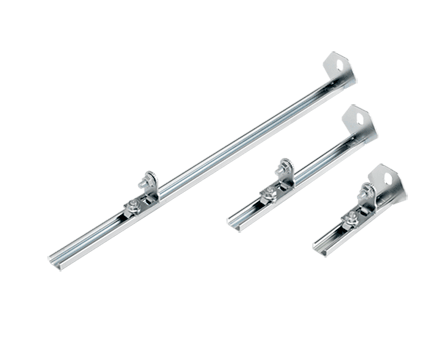

Concept Adjustable-Depth Mounting Kits 4 Slides, fits 20.00 deep, Plated, Steel
- Kits include slide mechanisms and hardware
- Use two kits when enclosure has six collar studs for mounting panel
- Kit catalog numbers ending in 2 contain two slide mechanisms; catalog numbers ending in 4 contain four slide mechanisms
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Fits Concept Enclosure: When C = 20.00 in / When C = 508 mm
- Color: Unpainted
- Finish: Plated
- Weight: 3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Adjustable-Depth Mounting Kits provide mounting means for installing panels, swing-out panels, DIN rails, rack angles, mounting channels or grid straps at any depth from front to rear of enclosure.
Dead Front Panel and Swing-Out Rack Frame cannot be mounted on adjustable mounting kit.
BULLETIN NUMBER
CWY
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
Concept Adjustable-Depth Mounting Kits 4 Slides, fits 20.00 deep, Plated, Steel
- Kits include slide mechanisms and hardware
- Use two kits when enclosure has six collar studs for mounting panel
- Kit catalog numbers ending in 2 contain two slide mechanisms; catalog numbers ending in 4 contain four slide mechanisms
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Fits Concept Enclosure: When C = 20.00 in / When C = 508 mm
- Color: Unpainted
- Finish: Plated
- Weight: 3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Adjustable-Depth Mounting Kits provide mounting means for installing panels, swing-out panels, DIN rails, rack angles, mounting channels or grid straps at any depth from front to rear of enclosure.
Dead Front Panel and Swing-Out Rack Frame cannot be mounted on adjustable mounting kit.
BULLETIN NUMBER
CWY
