Swing-Out Rack Mounting Frame for Free-Stand, fits 72.06x30.06, White, Steel
- The Swing-Out Rack Mounting Frames have mounting holes tapped #10-32 thread and spaced per EIA 310-D standard
- Plated mounting hardware is provided
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Unit Quantity: 33
- Fits Enclosure Size: 72.06 x 30.06 in / 1830 x 764 mm
- Max D: 16.25 in / 413 mm
- Color: White
- Finish: Powder Coated
- Thickness: 10 ga / 3.4 mm
- Weight: 62 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS

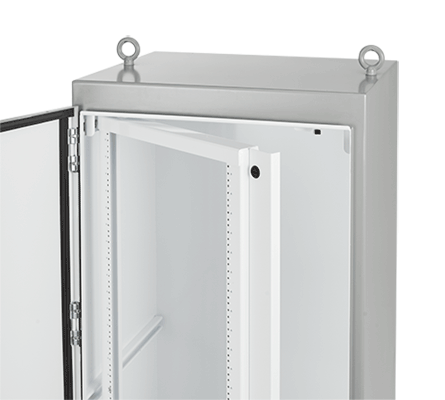

Swing-Out Rack Mounting Frames is used for mounting 19-inch (483-mm) rack mounting equipment. The frame pivots within the enclosure to allow access to the back of the mounted equipment. The frame is full-length and can be installed in 72.00-in. (1829-mm) and 90.00-in. (2286-mm) high enclosures that are 30.00-in. (762-mm) or 36.00-in. (914-mm) wide. They can be installed in 60.00-in. (1524-mm) or 72.00-in. (1829-mm) wide enclosures if a center panel support is used. The design features smooth operation and secure positioning anywhere along the horizontal mounting channels. Frame swings from the left side.
One unit equals 1.75-in (44-mm).
BULLETIN NUMBER
A80
