Description

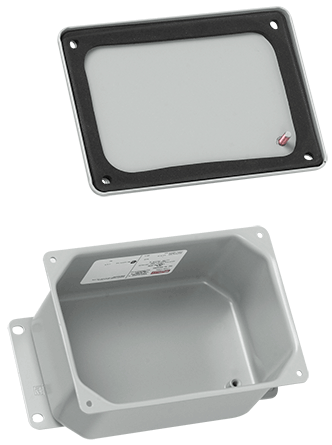

Screw Cover Contoured Type 4, 4.50x2.88x2.62, Gray, Steel
- No welded seams or sharp corners
- Formed flanged cover
- Cover screws
- Oil-resistant gasket
- External welded-on mounting brackets for easy installation.
- Bonding provision on cover
- Grounding Stud on body
PRODUCT ATTRIBUTES
- Height: 4.5 in / 114 mm
- Width: 2.88 in / 73 mm
- Depth: 2.62 in / 67 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; IP67
- Material: Mild Steel
- Interior Volume: 30.7 in³
- Mounting: 5 in / 127 mm
- Overall Dimensions: 5.56 x 3.31 in / 141 x 84 mm
- Color: Gray
- Color Code: ANSI 61
- Finish: Powder Coated
- Thickness: 16 ga / 1.52 mm
- Weight: 1.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
With its aesthetic, rounded corners, this enclosure is an economical solution for a broad range of electrical and terminal wiring applications that do not require a back panel.
BULLETIN NUMBER
A51DR
