Description

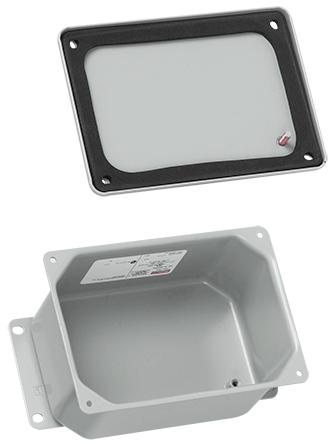

Flat and Dome Screw Cover Contoured Type 4, 3.50x4.00x2.75, Gray, Steel
- Drawn enclosure
- No welded seams or sharp corners
- Cover screws
- Formed flanged cover
- Oil-resistant gasket
- External welded-on mounting brackets for easy installation
- Bonding provision on cover
- Grounding stud on body
PRODUCT ATTRIBUTES
- Height: 3.5 in / 89 mm
- Width: 4 in / 102 mm
- Depth: 2.75 in / 70 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; IP67
- Material: Mild Steel
- Cover Style: Flat
- Interior Volume: 32.6 in³
- Mounting: 4 in / 102 mm
- Color: Gray
- Color Code: ANSI 61
- Finish: Powder Coated
- Thickness: 16 ga / 1.52 mm
- Weight: 1.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
An economical solution for a broad range of electrical and terminal wiring applications that don't require a back panel, this enclosure features aesthetic, rounded corners and is available in flat and dome cover models for mounting flexibility.
Domed-cover enclosure depth = V + 1 in. (25 mm)
BULLETIN NUMBER
A51DR
