Description

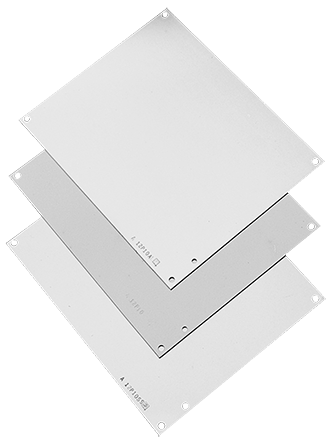

Panel for Type 3R, 4, 4X, 12 and 13 Enclosure, fits 24x24, Aluminum
- Panel mounting hardware is furnished with all enclosures which accept these panels
PRODUCT ATTRIBUTES
- Height: 21 in / 533 mm
- Width: 21 in / 533 mm
- Material: Aluminum
- Finish: Anodized
- Color: Unpainted
- Thickness: 10 ga / 2.5 mm
- Panel Size: 21.00 x 21.00 in / 533 x 533 mm
- Panel Gauge: 0.10 in./3 mm
- Edge Flange Quantity: 2
- Hole Quantity: 4
- Weight: 6 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Use these panels in Wall-Mount and Free-stand/Floor-Mount Enclosure. Available in various materials to meet various application requirements. Stainless steel and aluminum panels are protected on one side with a plastic film.
BULLETIN NUMBER
PNLWM
