Description

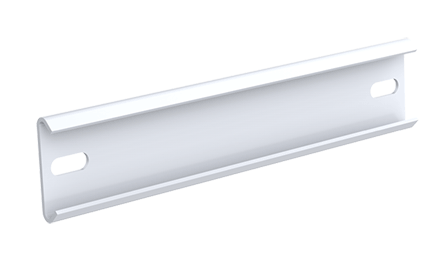

Terminal Block Strip for Junction Box, fits 12.00, Steel
- Terminal blocks will accept wire sizes from #22 through #10
- Terminal blocks are included with terminal block strip
PRODUCT ATTRIBUTES
- Enclosure Dimension, Parallel to Strips: 12 in
- Terminal Blocks Per Strip: 16
- Useable Space: 8.62 in / 219 mm
- Color: Unpainted
- Finish: Plated
- Material: Mild Steel
- Thickness: 18 ga / 1.21 mm
- Weight: 0.8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS

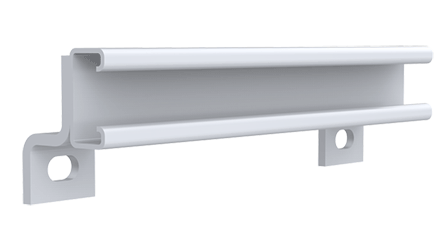

A terminal block strip is a flat channel holding Buchanan 600V terminal blocks with tubular clamp contacts assembled on the channel. The number of terminal blocks assembled on each channel is shown in the table. The terminal block strips can be positioned anywhere along the brackets and are held in place with spring locking nuts.
BULLETIN NUMBER
A80
