Description
Features

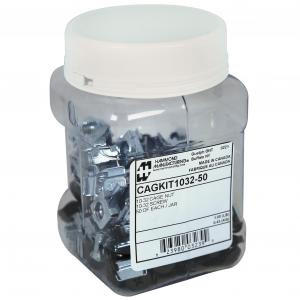

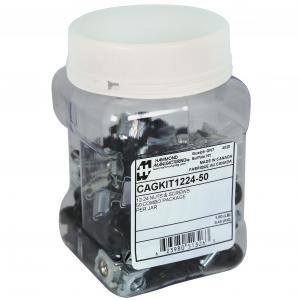

- This combo-pack is available in 10-32, 12-24 or M6 Mounting Screws and Cage Nuts.
- Convenient to have when installing rack-mount equipment in server (square hole) rails.
- The pack includes an equal number of 0.750” length black rack screws and zinc plated cage nuts for square hole punched panel rails.
Specifications
Quadrex truss oval head screw.
- ø 0.186 Diameter.
- 0.75" Length.
- Machine screw with full dog point.
- UNF-2A Threaded.
- Heat-treated low-carbon steel to ANSI B18.6.3 standard.
Captive flat washer constructed of black Nylon 6/6.
- Outside Diameter: 0.429"-0.439"
- Thickness: 0.030"-0.040"
Cage Nuts
- Constructed of zinc-plated SAE 1050-1065 spring steel.
- 0.375in (9.54mm) square hole punched panel rails.
- Heat-treated through austempering.
- Recommended torque spec 31.4 +/- 20% inch-lbs
- Maximum load rating will vary depending on rail mounting and cabinet load rating.
