Genesis 22965002 22/6+22/4+22/2+18/4, Each Shield Yellow 500Ft. Reel

Write a Review
$510.97
SKU:
22965002
Shipping:
Calculated at Checkout

Product Overview

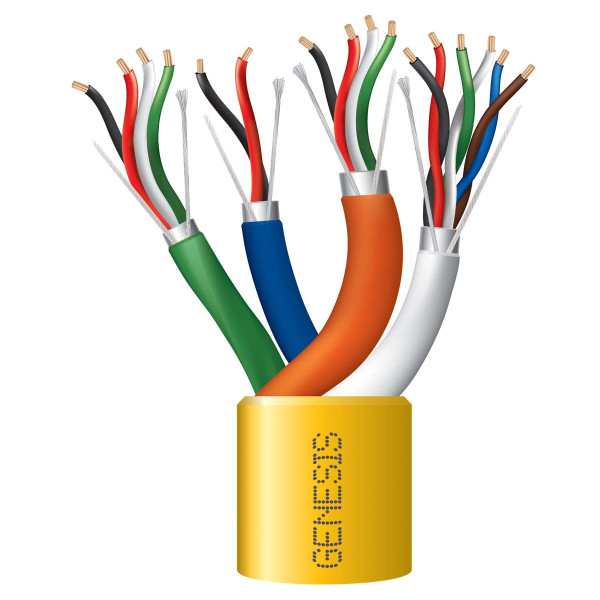

22965002 – RISER COMPOSITE ACCESS CONTROL, YELLOW, 500 FT. REEL

This Genesis® cable includes all cables needed to wire a standard access point under an overall jacket with a riser rating. Components include: 22/6 stranded shielded, 22/4 stranded shielded, 22/2 stranded shielded, and 18/4 stranded shielded. Choose this cable for faster and more reliable access control installations.

Cable Rating Riser, FT4
Cable Listing CL3R, FPLR, CMR, FT4, Sunlight Resistant
Wire Gauge (AWG) 22, 18
Solid or Stranded Stranded
Number of Strands 7
Conductor Material Bare Copper
Conductor Insulation Material Polypropylene
Shielding Yes
Rip Cord Yes
Jacket Material PVC
Nominal Outer Diameter 0.400 in.
Rated Voltage (Max) 300 Volts
Temperature Rating (Max) 75 °C
Temperature Rating (Min) -20 °C
Product Length 500 ft
Length Per Unit 500 ft.
Package Quantity 1
Cable Packaging Reel
Package Length 13.75 in
Package Width 13.75 in
Package Height 13.25 in
Product Weight 47.7 lb
