32955099 – PLENUM PROFUSION® ACCESS CONTROL, UNJACKETED, 500 FT. REEL

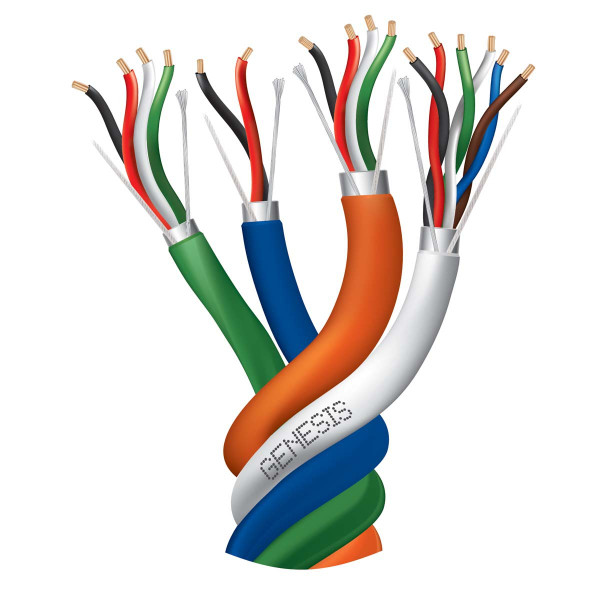

This Genesis® cable features Profusion® technology that enables a bundle of components that remains unified throughout the pull and separates easily at an access point without the hassle of an overall jacket. This bundle includes all cables needed to wire a standard access point and a plenum rating. Components include: 22/6 stranded shielded, 22/4 stranded shielded, 22/2 stranded shielded, and 18/4 stranded shielded. Choose this cable for faster and more reliable access control installations.
| Cable Rating | Plenum, FT6 |
|---|---|
| Cable Listing | CL3P, FPLP, CMP, FT6 |
| Wire Gauge (AWG) | 22, 18 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| Conductor Insulation Material | Plenum PVC |
| Shielding | Yes |
| Rip Cord | Yes |
| Jacket Material | Plenum PVC |
| Nominal Outer Diameter | 0.360 in. |
| Rated Voltage (Max) | 300 Volts |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 500 ft |
| Length Per Unit | 500 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Package Length | 13.75 in |
| Package Width | 13.75 in |
| Package Height | 13.25 in |
| Product Weight | 47 lb |
