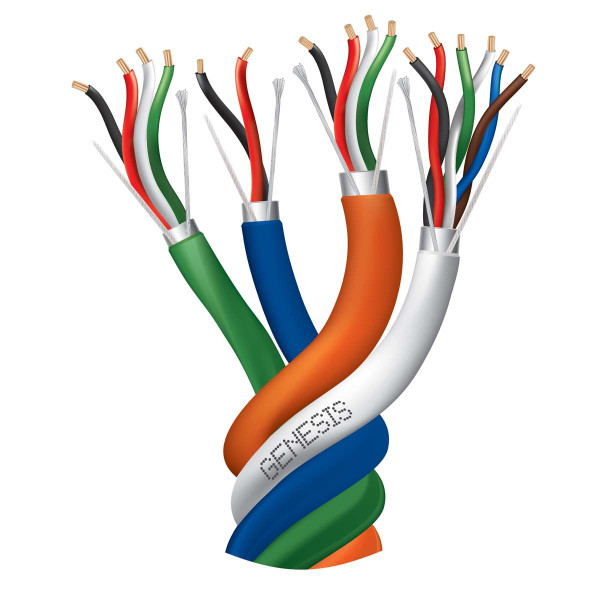

Genesis 22951099 22/6+22/4+22/2+18/4, Each Shield Unjacketed 1000Ft. Reel

Write a Review
$965.65
SKU:
22951099
Shipping:
Calculated at Checkout

Product Overview

22951099 – RISER PROFUSION® ACCESS CONTROL, UNJACKETED, 1000 FT. REEL

This Genesis® cable features Profusion® technology that enables a bundle of components that remains unified throughout the pull and separates easily at an access point without the hassle of an overall jacket. This bundle includes all cables needed to wire a standard access point and a riser rating. Components include: 22/6 stranded shielded, 22/4 stranded shielded, 22/2 stranded shielded, and 18/4 stranded shielded. Choose this cable for faster and more reliable access control installations.

Cable Rating Riser, FT4
Cable Listing CL3R, FPLR, CMR, FT4, Sunlight Resistant
Wire Gauge (AWG) 22, 18
Solid or Stranded Stranded
Number of Strands 7
Conductor Material Bare Copper
Conductor Insulation Material Polypropylene
Shielding Yes
Rip Cord Yes
Jacket Material PVC
Nominal Outer Diameter 0.360 in.
Rated Voltage (Max) 300 Volts
Temperature Rating (Max) 75 °C
Temperature Rating (Min) -20 °C
Product Length 1000 ft
Length Per Unit 1000 ft.
Package Quantity 1
Cable Packaging Reel
Package Length 15.75 in
Package Width 15.75 in
Package Height 13.25 in
Product Weight 79.4 lb
