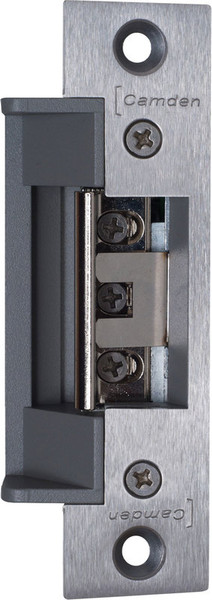

Camden Controls CX-EPD-2000L Standard Body, Pre Load Electric Strike

OVERVIEW:

20 Series pre load electric strikes offer the highest pre load rating, precision engineered quality and the most adjustability of any strike in the industry. 'Universal' operation include 12/24V AC/DC, selectable fail safe/fail secure, an adjustable keeper and latch monitoring.

FEATURES:

• For cylindrical locksets
• 1/2" to 5/8" latch projection (Throw)
• Pre load feature eliminates binding due to pressue against door latch
• Standard body model with selection of 4 faceplates
• EZ FIT™ ‘no cut' model CX-EPD2850L with both vertical and horizontal faceplate adjustment
• Adjustable keeper, standard on all models
• Latch monitoring, standard on all models
• Dual voltage
• Selectable fail safe/fail secure
• 5 year warranty

SPECIFICATIONS:

• Voltage: 12/24V AC/DC
• Current Draw:
• 130 mA @ 12VDC
• 200 mA @ 12VAC
• 70 mA @ 24V AC/DC
• Static Strength: 1,500 Lbs.
• Pre-Load (Fail Secure Only): 20 Lbs.
• Endurance: 500,000 Cycles
• Duty: Continuous
• Operation: Initial Buzz then Silent
• Latch Monitor: Standard
• Keeper: Adjustable
• Dimensions:
• 1-3/4"H x 4-1/8"W x 1-1/2"D
• (44mm x 105mm x 38mm)

ELECTRIC STRIKES WITHOUT FACEPLATE:

• CX-EPD-2000L: Standard body, no faceplate
• NOTE: Faceplate options sold separately

ELECTRIC STRIKES WITH FACEPLATE:

• CX-EPD-2010L: ANSI Square, 4 7/8" x 1 1/4"
• CX-EPD-2020L: ANSI Round, 4 7/8" x 1 1/4"
• CX-EPD-2030L: Hollow Metal Door, 6 7/8 x 1 1/4"
• CX-EPD-2040L: Wood Door, 7 15/16" x 1 7/16"

FACEPLATES:

• CX-ESP1: ANSI Square, 4 7/8" x 1 1/4", Stainless Steel
• CX-ESP2: ANSI Round, 4 7/8" x 1 1/4", Stainless Steel
• CX-ESP3: Hollow Metal Door, 6 7/8" x 1 1/4", Stainless Steel
• CX-ESP4: Wood Door, 7 15/16 x 1 7/16", Stainless Steel
