Product Overview
OVERVIEW:

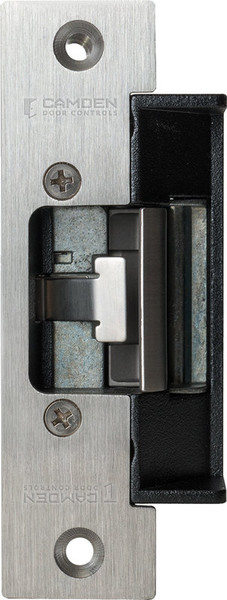

Standard Depth Grade 1 'Universal' electric strike, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B).
Same model as the CX-ED1079D and includes latch monitoring.
The CX-ED1079 (low profile, for 5/8" latch projection) and CX-ED1079D (standard depth, for 3/4" latch projection) 'Universal' grade 1 ANSI strikes offer 'Universal' performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment.
FEATURES:
- Centerline latch entry for cylindrical and mortise locksets.
- CX-ED1079, low profile. 1/2" to 5/8" latch projection (throw)
- CX-ED1079D, Std. Depth. 5/8" to 3/4" latch projection (throw)
- Selectable 12/24V AC/DC
- Selectable fail safe/fail secure operation
- Horizontal adjustability of strike faceplate/body
- 3 stainless steel faceplates included: ANSI square, hollow metal and wood door frame
- Continuous duty operation
- Non-handed
- 5 year warranty
SPECIFICATIONS:
- Voltage: 12/24V AC/DC
- Current Draw:
- 260 mA @ 12V AC/DC
- 150 mA @ 24V AC/DC
- Static Strength: 1,500 Lbs.
- Dynamic Strength: 70 Ft-Lbs.
- Mode:
- Selectable Fail Safe
- Fail Secure
- Operation:
- AC - Buzz
- DC - Silent
- Duty: Continuous
- Latch Monitor: Yes
- Dimensions:
- CX-ED1079:
- 3-3/8"H x 1-3/4"W x 1-7/32"D
- (86mm x 44mm x 31mm)
- CX-ED1079D:
- 3-3/8"H x 1-3/4"W x 1-3/8"D
- (86mm x 44mm x 35mm)
FACEPLATES:
- INCLUDED IN PACKAGE:
- CX-ESP1B: ANSI Square, 4 7/8" x 1 1/4", Stainless Steel
- CX-ESP3B: Hollow Metal Door, 6 7/8" x 1 1/4", Stainless Steel
- CX-ESP4B: Wood Door, 7 15/16" x 1 7/16", Stainless Steel
- ADDITONAL FACEPLATE:
- CX-ESP2B: ANSI Round, 4 7/8" x 1 1/4", Stainless Steel
LIP EXTENSION BRACKETS:
- CX-ED-LIP1: 1" Lip extension for ANSI strikes (Stackable)
- CX-ED-LIP2: 2" Lip extension for ANSI strikes
CUTTING JIGS:
- CX-JIG1: For CX-ED1079L Strike, ANSI Round faceplate (CX-ESP2B)
- CX-JIG2: For CX-ED1079L Strike, Hollow metal door faceplates (CX-ESP3B)
- CX-JIG3: For CX-ED1079DL Strike, ANSI Round faceplates (CX-ESP2B)
- CX-JIG4: For CX-ED1079DL Strike, Hollow metal door faceplates (CX-ESP3B)
- CX-JIG5: For CX-ED1079L & CX-ED1079DL Strikes, ANSI & Hollow metal door faceplates
