Belden 9498 0001000 Audio, Control and Instrumentation, 3 Conductor 16 AWG, Unjacketed
3 Conductor 16 AWG stranded (19x29) tinned copper conductors, conductors cabled, PVC insulation, cabled wire (no jacket).
Ordering Details
- Manufacturer Part Number: 9498 0001000
- Color: None
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825239970
Supplied as one 1,000 ft Reel.

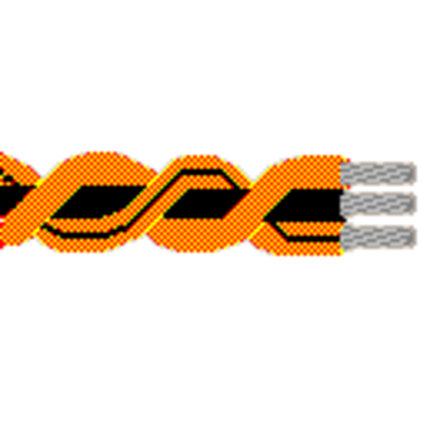

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Manufacturer Status: Discontinued
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; panel wiring
Product Life Cycle
- Life Cycle: Discontinued - the product is no longer manufactured
- Discontinuation Announcement Date: 1999-02-19
Construction Details
- Size: 16; Stranding: 19x29; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Insulation Diameter: 0.113 in (2.87 mm); Color Code: Orange, Black, Orange w/Black Stripe
- Material: No Shield
- Nom. Diameter: 0.243 in
Electrical Characteristics
- UL Voltage Rating: 300 V RMS (UL AWM Style 1007)
Mechanical Characteristics
- UL Temperature: 80°C (UL AWM Style 1007); Operating: -40°C To +80°C
- Max. Pull Tension: 97 lbs (44 kg)
- Bulk Cable Weight: 38 lbs/1000ft (57 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1007 (300 V 80°C)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
