Description

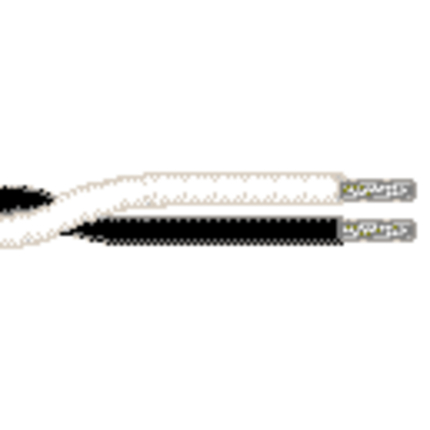

Belden 9497 0001000 Speaker Cable, 2 Conductor 16 AWG TC, Unshielded, CM
2 Conductor 16 AWG stranded (19x29) ETP high-conductivity tinned copper conductors, PVC insulation, cabled.
Ordering Details
- Manufacturer Part Number: 9497 0001000
- Color: None
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825254034
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: Speaker Cable
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 16; Stranding: 19x29; Material: TC - Tinned Copper (High Conductivity)
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.023 in (0.58 mm); Color Code: Black, Orange
- Material: No Shield
- Nom. Diameter: 0.21 in (5.3 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 4.27 Ohm/1000ft; Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Max. Current: 7.1 Amps per Conductor at 25ºC
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -30°C To +80°C
- Max. Pull Tension: 84 lbs (38 kg)
- Bulk Cable Weight: 28 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: VW-1, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- AWM Compliance: AWM 1007
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.453 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
