Description
Belden 9341 0105000 High Perform Instr, 1 Pr #18 Str TC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC
High Performance Instrumentation, 1 Pair 18AWG (19x30) Tinned Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC
Ordering Details
- Manufacturer Part Number: 9341 0105000
- Color: Black
- UPC/EAN: 612825231943

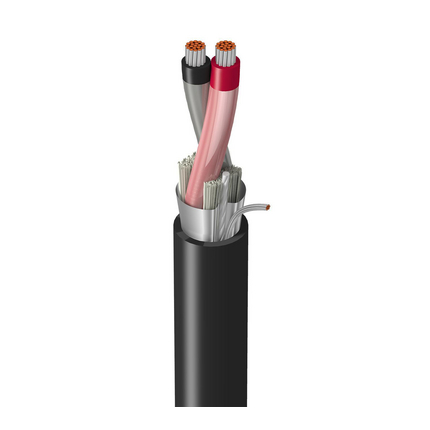

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.088 in (2.2 mm); Color Code: ICEA Chart E2
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (19x30) TC
- Separator: Cotton Serve; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.047 in (1.2 mm); Nom. Diameter: 0.274 in (6.96 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.274 in (6.96 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 7.06 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 43 pF/ft (140 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 74 pF/ft (240 pF/m); Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Max. Current: 5 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 5.14 Ohm/1000ft (16.9 Ohm/km)
- UL Voltage Rating: 600 V (TC), 150 V (NPLF)
Mechanical Characteristics
- UL Temperature: 90°C Dry, 90°C Wet; Operating: -30°C to +90°C Dry, 75°C wet
- Stationary Min.: 2.7 in (69 mm); Installation Min.: 2.7 in (69 mm)
- Max. Pull Tension: 74.1 lbs (33.6 kg)
- Bulk Cable Weight: 40 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
- Flammability / Reaction to Fire: UL 1685 UL Loading, IEEE 1202, FT4
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 336, Article 760, NPLF, TC
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.602 Revision Date: 04-10-2026
- Footnote: C - CRATE REEL PUT-UP.
