Belden 9341 0101000 High Perform Instr, 1 Pr #18 Str TC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC - Black

$4,543.99
SKU:
9341 0101000
Shipping:
Calculated at Checkout
Color:
Black
Manufacturer Status:
Active
Product Family:
9341
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9341 0101000 High Perform Instr, 1 Pr #18 Str TC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC

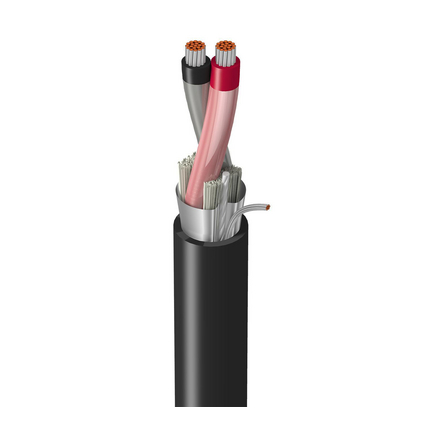

High Performance Instrumentation, 1 Pair 18AWG (19x30) Tinned Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC

Ordering Details

  • Manufacturer Part Number: 9341 0101000
  • Color: Black
  • UPC/EAN: 612825231912
  • Manufacturer Footnote: C

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.088 in (2.2 mm); Color Code: ICEA Chart E2
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (19x30) TC
  • Separator: Cotton Serve; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.047 in (1.2 mm); Nom. Diameter: 0.274 in (6.96 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.274 in (6.96 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 7.06 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 43 pF/ft (140 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 74 pF/ft (240 pF/m); Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Max. Current: 5 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 5.14 Ohm/1000ft (16.9 Ohm/km)
  • UL Voltage Rating: 600 V (TC), 150 V (NPLF)

Mechanical Characteristics

  • UL Temperature: 90°C Dry, 90°C Wet; Operating: -30°C to +90°C Dry, 75°C wet
  • Stationary Min.: 2.7 in (69 mm); Installation Min.: 2.7 in (69 mm)
  • Max. Pull Tension: 74.1 lbs (33.6 kg)
  • Bulk Cable Weight: 40 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
  • Flammability / Reaction to Fire: UL 1685 UL Loading, IEEE 1202, FT4
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 336, Article 760, NPLF, TC
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.602 Revision Date: 04-10-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9341 Product Information
