Belden 9320 0601000 High Perform Instr, 1 Pr #20 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC - Chrome, 1,000 ft Reel

$2,200.99
SKU:
9320 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9320
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9320 0601000 High Perform Instr, 1 Pr #20 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC

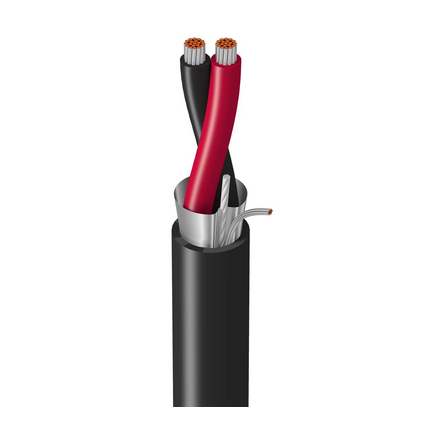

High Performance Instrumentation, 1 Pair 20AWG (19x32) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC

Ordering Details

  • Manufacturer Part Number: 9320 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825476894/612825476894

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 20 AWG; Stranding: 19x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.072 in (1.8 mm); Color Code: Black, Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (19x34) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.221 in (5.61 mm)
  • Overall Cable Diameter (Nominal): 0.221 in (5.61 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 11.3 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 52 pF/ft (170 pF/m); Nom. Capacitance Cond-to-Shield: 97 pF/ft (320 pF/m); Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Max. Current: 3.8 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 11.32 Ohm/1000ft (37.14 Ohm/km)
  • UL Voltage Rating: 300 V (PLTC, CMG)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C to +105°C
  • Temperature Table Notes: AWM 80°C
  • Stationary Min.: 2.2 in (56 mm); Installation Min.: 2.2 in (56 mm)
  • Max. Pull Tension: 54 lbs (24 kg)
  • Bulk Cable Weight: 29 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
  • Flammability / Reaction to Fire: UL 1685 UL Loading, FT4, T-29-520, IEEE 1202
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.611 Revision Date: 09-07-2025
  • Footnote: Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
