Belden 9316 0601000 High Perform Instr, 1 Pr #16 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC - Chrome, 1,000 ft Reel

$3,293.99
SKU:
9316 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9316
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9316 0601000 High Perform Instr, 1 Pr #16 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC

High Performance Instrumentation, 1 Pair 16AWG (19x29) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC

Ordering Details

  • Manufacturer Part Number: 9316 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825228363

Supplied as one 1,000 ft Reel.

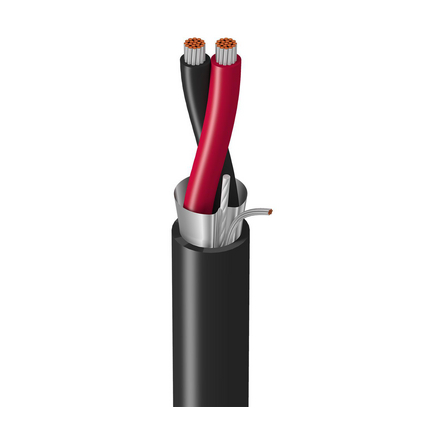

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.096 in (2.4 mm); Color Code: Black, Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (19x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.270 in (6.86 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.270 in (6.86 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 4.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 68 pF/ft (220 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 121 pF/ft (397 pF/m); Nom. Inductance: 0.16 µH/ft (0.52 µH/m); Max. Current: 6.2 Amps per conductor at 25°C
  • Nom Outer Shield DCR: 5.3 Ohm/1000ft (17 Ohm/km)
  • UL Voltage Rating: 300 V (PLTC, CMG)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C to +105°C
  • Temperature Table Notes: AWM 80°C
  • Stationary Min.: 2.6 in (66 mm); Installation Min.: 2.6 in (66 mm)
  • Max. Pull Tension: 105 lbs (47.6 kg)
  • Bulk Cable Weight: 41 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Sunlight Resistance
  • Flammability / Reaction to Fire: UL 1685 UL Loading, FT4, T-29-520, IEEE 1202
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.609 Revision Date: 04-10-2026
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
