Belden 9192 0041000 Video Triax, RG11, #15 Stranded, CL2X - Yellow, 1,000 ft Reel

$5,386.99
SKU:
9192 0041000
Shipping:
Calculated at Checkout
Color:
Yellow
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Discontinued
Product Family:
9192
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9192 0041000 Video Triax, RG11, #15 Stranded, CL2X

15 AWG stranded (19x27) .064" bare copper conductor, foam HDPE insulation, bare copper braid shields (90% and 80% coverage), PVC jacket (polyethylene insulation between braids).

Ordering Details

  • Manufacturer Part Number: 9192 0041000
  • Color: Yellow
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825225201
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

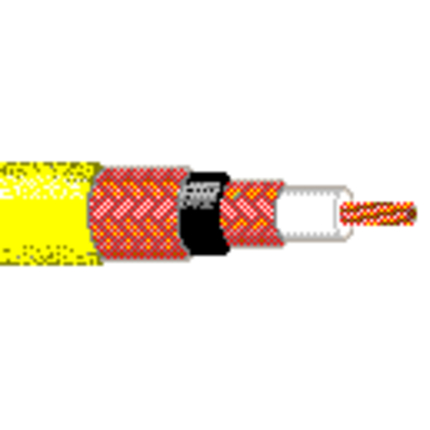

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Manufacturer Status: Discontinued

Product Life Cycle

  • Life Cycle: Discontinued - the product is no longer manufactured
  • Discontinuation Announcement Date: 1999-02-19

Construction Details

  • RG Type: 11
  • Size: 15; Stranding: 19x27; Nom. Diameter: 0.064 in; Material: BC - Bare Copper
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.312 in (7.92 mm)
  • Insulation Table Notes: Gas Injected
  • Shield Type: Braid; Material: Bare Copper (BC); Coverage: 90%
  • Material: PE - Polyethylene; Nom. Diameter: 0.391 in (9.93 mm)
  • Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 90%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.52 in

Electrical Characteristics

  • Frequency: 5-850 MHz; Min. Return Loss: 21 dB
  • Frequency: 1 MHz; Nom. Attenuation: 0.1 dB/100ft
  • Frequency: 3.6 MHz; Nom. Attenuation: 0.3 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 0.5 dB/100ft
  • Frequency: 71.5 MHz; Nom. Attenuation: 1.2 dB/100ft
  • Frequency: 135 MHz; Nom. Attenuation: 1.8 dB/100ft
  • Frequency: 270 MHz; Nom. Attenuation: 2.6 dB/100ft
  • Frequency: 360 MHz; Nom. Attenuation: 3.1 dB/100ft
  • Frequency: 540 MHz; Nom. Attenuation: 3.9 dB/100ft
  • Frequency: 720 MHz; Nom. Attenuation: 4.7 dB/100ft
  • Frequency: 750 MHz; Nom. Attenuation: 4.8 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 5.7 dB/100ft
  • Nom. Conductor DCR: 3.1 Ohm/1000ft (10 Ohm/km); Nom. Inner Shield DCR: 1.6 Ohm/1000ft (5.2 Ohm/km); Nom. Outer Shield DCR: 1.6 Ohm/1000ft (5.2 Ohm/km); Nom. Capacitance Cond-to-Shield: 17.3 pF/ft (56.8 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 78%
  • UL Voltage Rating: 150 V RMS, 30 V RMS; Voltage Rating: 300 V RMS
  • Electrical Characteristics Notes: Nominal Capacitance 1st Shield to 2nd Shield: 205 pf/ft.

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -40°C To +75°C
  • Max. Pull Tension: 239 lbs (108 kg)
  • Bulk Cable Weight: 139 lbs/1000ft (207 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor
  • Flammability / Reaction to Fire: UL1685 UL Loading, VW-1
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: CL2X
  • AWM Compliance: AWM 1641 (30 V 80°C)
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.374 Revision Date: 07-30-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9192 Product Information
