Description
Belden 7803A 0101000 Video Triax, RG11, #14 Solid, PE Jacket, Waterblocked
14 AWG solid .064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% and 80% coverage), polyethylene jacket.
Ordering Details
- Manufacturer Part Number: 7803A 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825436010
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

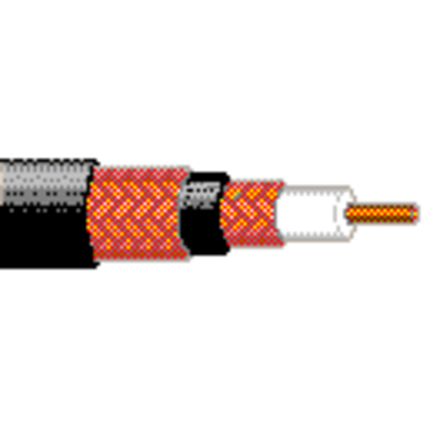

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Manufacturer Status: Discontinued
Product Life Cycle
- Life Cycle: Discontinued - the product is no longer manufactured
- Discontinuation Announcement Date: 2020-12-15
Construction Details
- RG Type: 11
- Size: 14; Stranding: Solid; Nom. Diameter: 0.064 in; Material: BC - Bare Copper
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.285 in (7.24 mm)
- Insulation Table Notes: Gas Injected
- Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
- Material: PE - Polyethylene; Nom. Diameter: 0.365 in (9.27 mm)
- Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 80%
- Outer Shield Table Notes: Polyethylene
- Material: PE - Polyethylene; Nom. Diameter: 0.475 in
Electrical Characteristics
- Frequency: 5-850 MHz; Min. Structural Return Loss: 21 dB
- Frequency: 850-3000 MHz; Min. Structural Return Loss: 15 dB
- Frequency: 1 MHz; Nom. Attenuation: 0.14 dB/100ft
- Frequency: 3.6 MHz; Nom. Attenuation: 0.3 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.4 dB/100ft
- Frequency: 71.5 MHz; Nom. Attenuation: 1.1 dB/100ft
- Frequency: 135 MHz; Nom. Attenuation: 1.6 dB/100ft
- Frequency: 270 MHz; Nom. Attenuation: 2.3 dB/100ft
- Frequency: 360 MHz; Nom. Attenuation: 2.6 dB/100ft
- Frequency: 540 MHz; Nom. Attenuation: 3.3 dB/100ft
- Frequency: 720 MHz; Nom. Attenuation: 3.8 dB/100ft
- Frequency: 750 MHz; Nom. Attenuation: 4 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 4.6 dB/100ft
- Frequency: 1500 MHz; Nom. Attenuation: 5.9 dB/100ft
- Frequency: 2250 MHz; Nom. Attenuation: 7.4 dB/100ft
- Frequency: 3000 MHz; Nom. Attenuation: 12.5 dB/100ft
- Nom. Conductor DCR: 2.5 Ohm/1000ft (8.2 Ohm/km); Nom. Inner Shield DCR: 1.6 Ohm/1000ft (5.2 Ohm/km); Nom. Outer Shield DCR: 1.4 Ohm/1000ft (4.6 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.1 pF/ft (52.8 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 84%
- Voltage Rating: 300 V RMS
Mechanical Characteristics
- Operating: -55°C To +80°C
- Max. Pull Tension: 170 lbs (77 kg)
- Bulk Cable Weight: 113 lbs/1000ft (168 kg/km)
Standards and Compliance
- Environmental Suitability: Outdoor - Water Exposure, Indoor, Outdoor, Aerial - When supported by messenger wire, Burial
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.336 Revision Date: 07-30-2026
- Footnote: C - CRATE REEL PUT-UP.
