Description

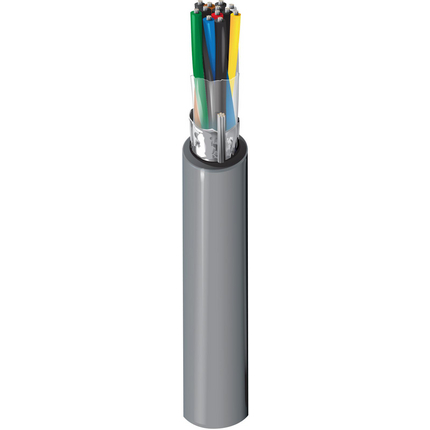

Belden 9184 0101000 Audio, Control & Instrument, #22-2pr, FPO, O/A Foil, PVC Jkt, CM
Audio, Control & Instrument Cable, 22 AWG solid tinned copper conductors, Datalene® insulation, twisted pairs, Duofoil® shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.
Ordering Details
- Manufacturer Part Number: 9184 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825225140
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 2; Size: 22 AWG; Stranding: Solid; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.035 in (0.89 mm); Nom. Insulation Diameter: 0.096 in (2.4 mm); Color Code: Black & Yellow, Red & Blue
- Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.041 in (1.0 mm); Nom. Diameter: 0.400 in; Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.400 in
Electrical Characteristics
- Nom. Conductor DCR: 20.6 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 8.7 pF/ft (29 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 14.1 pF/ft (46.3 pF/m); Nom. Characteristic Impedence: 150 Ohm; Nom. Inductance: 0.27 µH/ft (0.89 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 4.8 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 8 Ohm/1000ft (26 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +75°C
- Stationary Min.: 4 in (100 mm); Installation Min.: 4 in
- Max. Pull Tension: 40 lbs (18 kg)
- Bulk Cable Weight: 63 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: AWM 2668
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.396 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
