Description

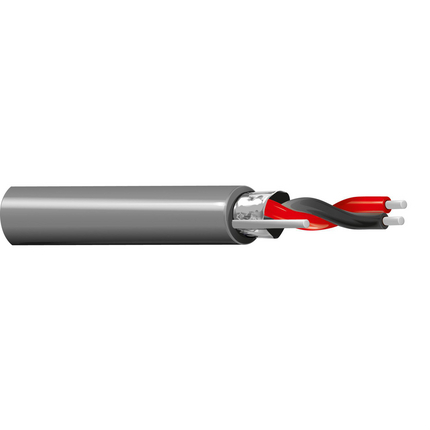

Belden 8450 0101000 Audio & Instrumentation, #22-1pr, TC, O/A Foil, CM
22 AWG solid tinned copper conductors, polypropylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG solid TC drain wire, PVC jacket.
Ordering Details
- Manufacturer Part Number: 8450 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825207627
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Size: 22; Stranding: Solid; Material: TC - Tinned Copper
- Material: PP - Polypropylene; Nom. Thickness: 0.007 in (0.18 mm); Color Code: Black & Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Diameter: 0.118 in
Electrical Characteristics
- Nom. Conductor DCR: 16.1 Ohm/1000ft (52.8 Ohm/km); Nom. Capacitance Cond-to-Cond: 40 pF/ft (130 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 76 pF/ft (250 pF/m); Nom. Characteristic Impedence: 40 Ohm; Nom. Delay: 1.5 ns/ft; Nom. Inductance: 0.08 µH/ft (0.26 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 2.9 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 12.65 Ohm/1000ft (41.50 Ohm/km)
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C To +105°C
- Max. Pull Tension: 37 lbs (17 kg)
- Bulk Cable Weight: 12 lbs/1000ft (18 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CM
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.447 Revision Date: 09-07-2025
