Belden 9182 0105000 150Ω Twinax, 1 Pr #22 Str TC, FPE Ins, OA Duofoil®, PVC Jkt, CMX

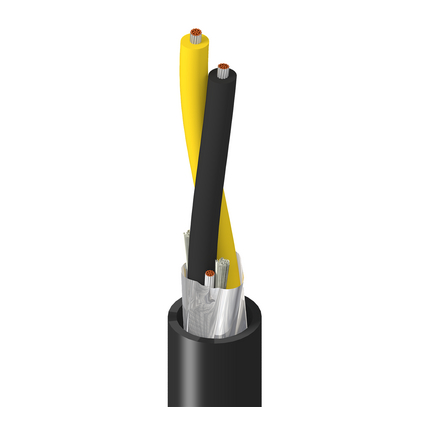

Twinax 150Ω, 1 Pair 22AWG (19x34) Tinned Copper, Foam PE Insulation, Overall Duofoil® Shield, PVC Outer Jacket, CMX
Ordering Details
- Manufacturer Part Number: 9182 0105000
- Color: Black
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825225133
- Manufacturer Footnote: C
Supplied as one 5,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Construction Details
- Element: Pair(s); No. of Elements: 2; Size: 22 AWG; Stranding: 19x34; Nom. Diameter: 0.030 in; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.134 in (3.40 mm); Color Code: Black & Yellow
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.345 in (8.76 mm)
- Overall Cable Diameter (Nominal): 0.345 in (8.76 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.40 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 1.20 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 2.70 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 4.30 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 6.20 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 8.80 dB/100ft
- Element: Pair(s); Nom. Conductor DCR: 14.0 Ohm/1000ft; Nom. Outer Shield DCR: 6.3 Ohm/1000ft (21 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.5 pF/ft (54.1 pF/m); Nom. Characteristic Impedance: 150 Ohm; Nom. Velocity of Prop.: 78%
- UL Voltage Rating: 300 V (CMX)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C
- Stationary Min.: 6.0 in (150 mm); Installation Min.: 3.5 in (89 mm)
- Max. Pull Tension: 28 lbs (13 kg)
- Bulk Cable Weight: 40 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Sunlight Resistance, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1, FT1
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, Article 800, CL2X, CMX
- AWM Compliance: AWM 2668
- CEC / C(UL) Compliance: CMX
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 89182
Product Notes
- Notes: Cable contains fillers for better electrical performance.
History
- Update and Revision: Revision Number: 0.523 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
