Belden 89182 0085000 150Ω Twinax, 1 Pr #22 Str TC, FFEP Ins, OA DF, FEP Jkt, CMP

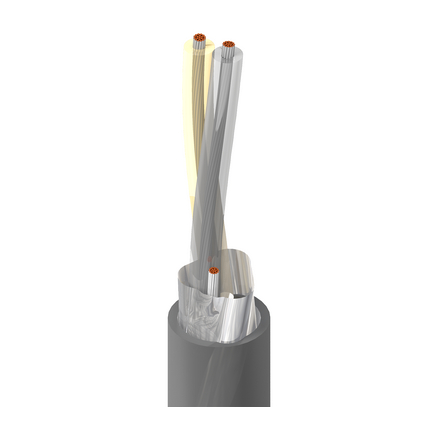

Twinax 150Ω, 1 Pair 22AWG (19x34) Tinned Copper, Foam FEP Insulation, Overall Duofoil® Shield, FEP Jacket, CMP
Ordering Details
- Manufacturer Part Number: 89182 0085000
- Color: Gray
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825220114
- Manufacturer Footnote: C
Supplied as one 5,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Construction Details
- Size: 22 AWG; Stranding: 19x34; Nom. Diameter: 0.030 in; Material: TC - Tinned Copper
- Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Insulation Diameter: 0.130 in (3.30 mm); Color Code: Black & Yellow
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Material: FEP - Fluorinated Ethylene Propylene; Nom. Diameter: 0.307 in (7.80 mm)
- Overall Cable Diameter (Nominal): 0.307 in (7.80 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.40 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 1.10 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 2.75 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 4.30 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 6.20 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 8.80 dB/100ft
- Element: Pair(s); Nom. Conductor DCR: 14.0 Ohm/1000ft; Nom. Outer Shield DCR: 6.3 Ohm/1000ft (21 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.5 pF/ft (54.1 pF/m); Nom. Characteristic Impedance: 150 Ohm; Nom. Velocity of Prop.: 78%
- UL Voltage Rating: 300 V RMS (CL2P, CMP)
Mechanical Characteristics
- UL Temperature: 200°C; Operating: -70°C to +200°C
- Stationary Min.: 6.25 in (159 mm); Installation Min.: 2.5 in (64 mm)
- Max. Pull Tension: 28 lbs (13 kg)
- Bulk Cable Weight: 49 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, Aerial - When supported by messenger wire, Burial
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: NFPA 262
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, Article 800, CL2P, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 9182
Product Notes
- Notes: Cable contains fillers for better electrical performance.
History
- Update and Revision: Revision Number: 0.526 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
