Description
Belden 8868 002500 Lead Wire, #22 Str TC, Conductive PO/PO Ins, PVC Jkt, 25kV
Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, Conductive PO/PO Insulation, PVC Outer Jacket, 25kV
Ordering Details
- Manufacturer Part Number: 8868 002500
- Color: Red
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825217138
Supplied as one 500 ft Reel.

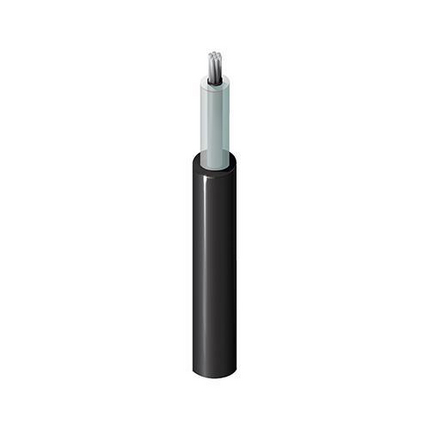

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: internal wiring of electronic equipments, high voltage applications
Construction Details
- Size: 22; Stranding: 7x30; Material: TC - Tinned Copper
- Material: PE - Polyethylene; Nom. Thickness: 0.044 in (1.1 mm)
- Insulation Table Notes: .003 in. conductive polyethylene over stranding.
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.15 in
- Nom. Diameter: 0.15 in
- Overall Cable Diameter (Nominal): 0.15 in (3.8 mm)
Electrical Characteristics
- Voltage Rating: 24,000 V DC, 9000 V RMS (AC (60 Hertz)); Breakdown Voltage: 48,000 V (DC)
Mechanical Characteristics
- Bulk Cable Weight: 10 lbs/1000ft (15 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
Product Notes
- Notes: *This cable is recommended for applications in which the source is power limited so that if a cable failure occurs the source limits the energy transfer to a value of less than that required to raise the conductor temperature to 90°C.
History
- Update and Revision: Revision Number: 0.388 Revision Date: 10-27-2026
