Belden 8866 002500 Lead Wire, #18 Str TC, Conductive PO/PO Ins, PVC Jkt, 40kV
Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, Conductive PO/PO Insulation, PVC Outer Jacket, 40kV
Ordering Details
- Manufacturer Part Number: 8866 002500
- Color: Red
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825217107
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

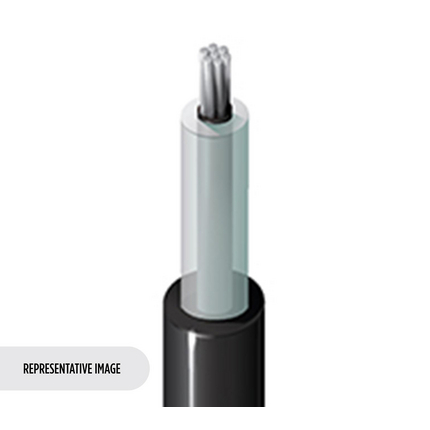

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: internal wiring of electronic equipments, high voltage applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
- Material: PO - Polyolefin; Nom. Thickness: 0.057 in (1.4 mm); Nom. Insulation Diameter: 0.178 in (4.52 mm)
- Insulation Table Notes: .008 in. conductive polyethylene over stranding.
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.208 in (5.28 mm)
- Overall Cable Diameter (Nominal): 0.208 in (5.28 mm)
Electrical Characteristics
- Nom. Conductor DCR: 6.48 Ohm/1000ft (21.3 Ohm/km); Max. Current: Single conductor in free air @ 30ºC: 8.1 A
- Voltage Rating: 40,000 V DC, 11,000 V RMS (AC (60 Hertz)); Breakdown Voltage: 80,000 V (DC)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -40°C To +80°C
- Stationary Min.: 2.08 in (52.8 mm); Installation Min.: 2.08 in (52.8 mm)
- Max. Pull Tension: 53 lbs (24 kg)
- Bulk Cable Weight: 20 lbs/1000ft (30 kg/km)
Standards and Compliance
- Environmental Suitability: Outdoor
- Sustainability: CA Prop 65
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.635 Revision Date: 09-16-2026
- Footnote: C - CRATE REEL PUT-UP.
