Description

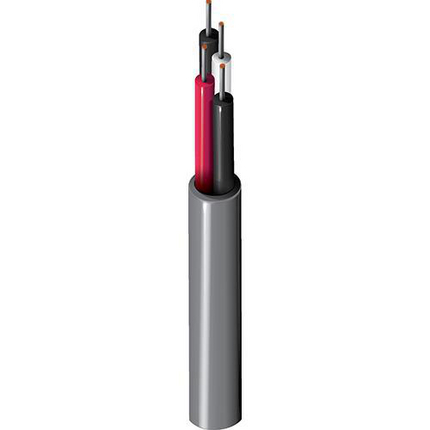

Belden 87761 002500 Electronic, 2 C #22 Str TC, FEP Ins, OS, PVDF Jkt, CMP
High Temperature Electronic, 2 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, PVDF Outer Jacket, CMP
Ordering Details
- Manufacturer Part Number: 87761 002500
- Color: Red
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825216049
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.007 in (0.18 mm); Nom. Insulation Diameter: 0.042 in (1.1 mm); Color Code: Black, Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVDF - Polyvinylidene Fluoride; Nom. Thickness: 0.014 in (0.36 mm); Nom. Diameter: 0.116 in (2.95 mm)
- Overall Cable Diameter (Nominal): 0.116 in (2.95 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft (220 pF/m); Nom. Characteristic Impedence: 42 Ohm; Nom. Inductance: 0.16 µH/ft (0.52 µH/m); Max. Current: 9 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 12.86 Ohm/1000ft (42.19 Ohm/km)
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -20°C to +150°C
- Stationary Min.: 1.2 in (30 mm); Installation Min.: 1.2 in (30 mm)
- Max. Pull Tension: 27.3 lbs (12.4 kg)
- Bulk Cable Weight: 12 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, UV Resistance
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 8761
History
- Update and Revision: Revision Number: 0.531 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
