Belden 88761 002500 Electronic, 2 C #22 Str TC, FEP Ins, OS, FEP Jkt, CMP - Red, 500 ft Reel

$2,161.99
SKU:
88761 002500
Shipping:
Calculated at Checkout
Color:
Red
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
88761
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 88761 002500 Electronic, 2 C #22 Str TC, FEP Ins, OS, FEP Jkt, CMP

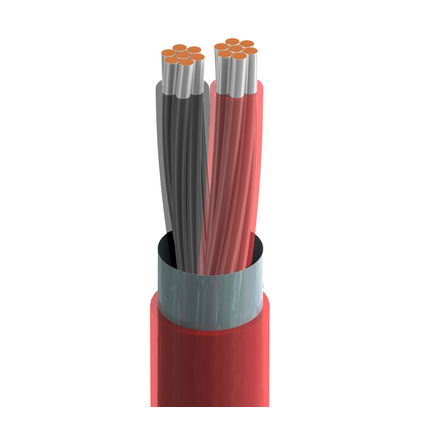

High Temperature Electronic, 2 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, FEP Outer Jacket, CMP

Ordering Details

  • Manufacturer Part Number: 88761 002500
  • Color: Red
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825217367
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.007 in (0.18 mm); Nom. Insulation Diameter: 0.042 in (1.1 mm); Color Code: Black, Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.014 in (0.36 mm); Nom. Diameter: 0.116 in (2.95 mm)
  • Overall Cable Diameter (Nominal): 0.116 in (2.95 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft (220 pF/m); Nom. Characteristic Impedence: 42 Ohm; Nom. Inductance: 0.16 µH/ft (0.52 µH/m); Max. Current: 9 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 12.86 Ohm/1000ft (42.19 Ohm/km)
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 150°C; Operating: -20°C to +150°C
  • Stationary Min.: 1.2 in (30 mm); Installation Min.: 1.2 in (30 mm)
  • Max. Pull Tension: 27.3 lbs (12.4 kg)
  • Bulk Cable Weight: 13 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 8761

Product Notes

  • Notes: For use in indoor plenum environments but also suitable for outdoor and underground applications. Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

  • Update and Revision: Revision Number: 0.588 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
