Belden 8759 0601000 Audio Cable, #20-1pr, TC, O/A Braid, CM

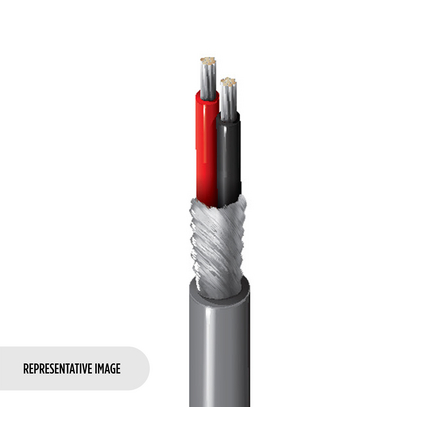

20 AWG stranded (7x28) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (90% coverage), PVC jacket.
Ordering Details
- Manufacturer Part Number: 8759 0601000
- Color: Chrome
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825215080
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Size: 20; Stranding: 7x28; Material: TC - Tinned Copper; No. of Pairs: 1
- Material: PVC - Polyvinyl Chloride; Nom. Insulation Diameter: 0.07 in (1.8 mm); Color Code: Black & Red
- Shield Type: Spiral Serve / Screen; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.199 in
Electrical Characteristics
- Nom. Characteristic Impedance: 43 Ohm
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Max. Pull Tension: 25 lbs (11 kg)
- Bulk Cable Weight: 23 lbs/1000ft (34 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CMG
- AWM Compliance: AWM 2095 (300 V 80°C)
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.411 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
