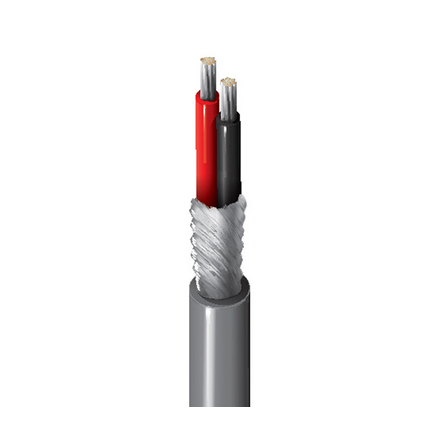

Belden 8737 0601000 Audio Cable, #22-1pr, TC, O/A Braid, CM
22 AWG stranded (7x30) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (85% coverage), PVC jacket.
Ordering Details
- Manufacturer Part Number: 8737 0601000
- Color: Chrome
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825214830
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Size: 22; Stranding: 7x30; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.06 in (1.5 mm); Color Code: Black & Red
- Shield Type: Spiral Serve / Screen; Material: Tinned Copper (TC); Coverage: 85%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.18 in
Electrical Characteristics
- Nom. Conductor DCR: 16 Ohm/1000ft (52 Ohm/km); Nom. Capacitance Cond-to-Cond: 40 pF/ft (130 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 70 pF/ft (230 pF/m); Nom. Characteristic Impedence: 49 Ohm; Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 3 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 11.7 Ohm/1000ft (38.4 Ohm/km)
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Max. Pull Tension: 20 lbs (9.1 kg)
- Bulk Cable Weight: 18 lbs/1000ft (27 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, 1202
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CMG
- AWM Compliance: AWM 2095 (300 V 80°C)
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.422 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
