Belden 8725 060500 Audio, Control and Instrumentation Cable, 4 Pr #20 Str TC, Ind. Shielded, PVC Jkt, CM - Chrome, 500 ft Reel

$3,973.99
SKU:
8725 060500
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8725
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8725 060500 Audio, Control and Instrumentation Cable, 4 Pr #20 Str TC, Ind. Shielded, PVC Jkt, CM

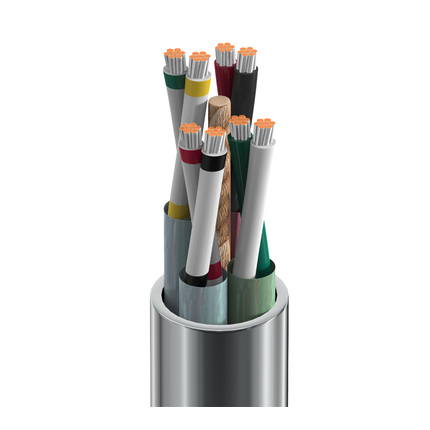

Audio, Control & Instrumentation Cable, 4 Pair 20 AWG (7 x 28) Tinned Copper, PP Insulation, Individually Foil Shielded, PVC Jacket, CM

Ordering Details

  • Manufacturer Part Number: 8725 060500
  • Color: Chrome
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825214663
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 4; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.068 in (1.7 mm); Color Code: Red & Black, Green & White, White/Red Stripe & White/Black Stripe, White/Green Stripe & White/Yellow Stripe
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC; Notes: Indiv foil tape w/Shorting fold and polyester tape over each pair
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.030 in (0.76 mm); Nom. Diameter: 0.336 in (8.53 mm)
  • Overall Cable Diameter (Nominal): 0.336 in (8.53 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 11.3 Ohm/1000ft; Nom. Inner Shield DCR: 18.38 Ohm/1000ft (60.30 Ohm/km); Nom. Capacitance Cond-to-Cond: 27 pF/ft (89 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 49 pF/ft (160 pF/m); Nom. Characteristic Impedence: 56 Ohm; Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Max. Current: 3.04 Amps per conductor @ 25°C
  • UL Voltage Rating: 400 V

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -40°C to +105°C
  • Stationary Min.: 4.0 in (100 mm); Installation Min.: 4.0 in (100 mm)
  • Max. Pull Tension: 109.9 lbs (49.85 kg)
  • Bulk Cable Weight: 69 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: VW-1
  • CPR Compliance: CPR Euroclass: Eca
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.453 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 8725 Product Information
