Belden 9570 060500 Audio, Control & Instrument, #24-10pr, PVC, PVC Jkt, CMG - Chrome, 500 ft Reel

$3,820.99
SKU:
9570 060500
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9570
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

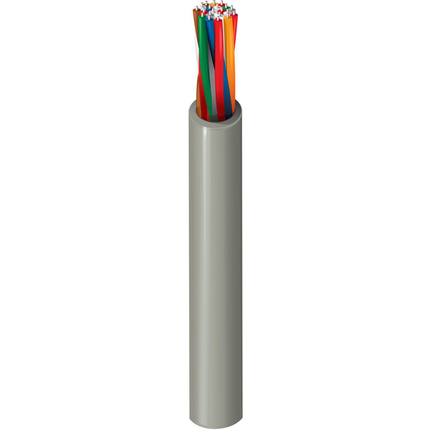

Belden 9570 060500 Audio, Control & Instrument, #24-10pr, PVC, PVC Jkt, CMG

Audio, Control & Instrument Cable, 24 AWG solid tinned copper conductors, PVC insulation, 10 twisted pairs, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 9570 060500
  • Color: Chrome
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825256076

Supplied as one 500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); voice communications

Construction Details

  • Element: Pair(s); No. of Elements: 10; Size: 24; Stranding: Solid; Material: TC - Tinned Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.041 in (1.0 mm); Color Code: White & Blue, White & Orange, White & Green, White & Brown, White & Gray, Red & Blue, Red & Orange, Red & Green, Red & Brown, Red & Gray
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.31 in (7.9 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 32.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Max. Current: 1 Amp per Conductor at 20ºC
  • UL Voltage Rating: 300 V (CMG), 150 V (AWM 2576)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C To +80°C
  • Stationary Min.: 3.1 in (79 mm); Installation Min.: 3.1 in (79 mm)
  • Max. Pull Tension: 102 lbs (46.3 kg)
  • Bulk Cable Weight: 56 lbs/1000ft

Standards and Compliance

  • Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2576
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.427 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9570 Product Information
