Belden 8677 060500 Electronic, 2 C #16 Str BC, PVC Ins - Chrome, 500 ft Reel

$1,182.99
SKU:
8677 060500
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8677
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

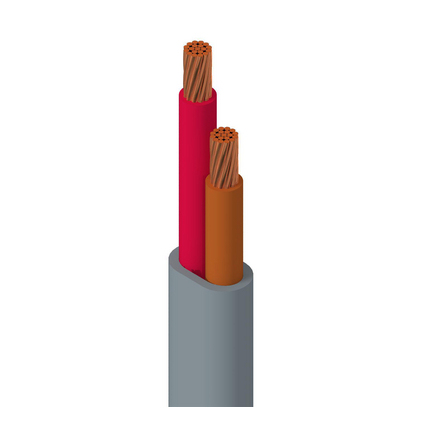

Belden 8677 060500 Electronic, 2 C #16 Str BC, PVC Ins

Electronic, 2 Conductor 16AWG (19x28) Bare Copper, PVC Insulation

Ordering Details

  • Manufacturer Part Number: 8677 060500
  • Color: Chrome
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825214038
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 16; Stranding: 19x29; Material: BC - Bare Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.024 in (0.61 mm); Nom. Insulation Diameter: 0.20 in (5.1 mm); Color Code: Brown, Red
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Diameter: 0.149 x 0.254 in

Electrical Characteristics

  • Max. Current: 6.5 Amps per Conductor at 25ºC
  • Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C To +75°C
  • Stationary Min.: 0.38 in (9.7 mm); Installation Min.: 0.38 in
  • Max. Pull Tension: 64.8 lbs (29.4 kg)
  • Bulk Cable Weight: 33 lbs/1000ft

Standards and Compliance

  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.381 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 8677 Product Information
