Description
Belden 8673 060500 Electronic, 2 C #12 Str BC, PVC Ins
Electronic, 2 Conductor 12AWG (19x24) Bare Copper, PVC Insulation
Ordering Details
- Manufacturer Part Number: 8673 060500
- Color: Chrome
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825214014
Supplied as one 500 ft Reel.

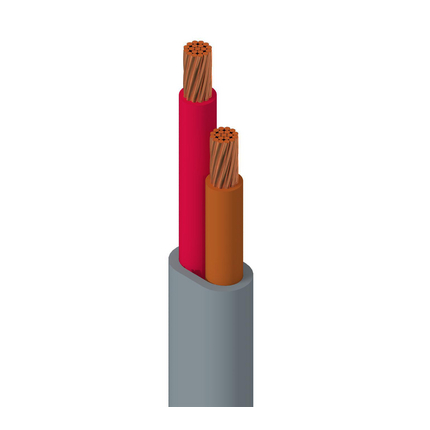

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 12; Stranding: 19x25; Material: BC - Bare Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.026 in (0.66 mm); Nom. Insulation Diameter: 0.20 in (5.1 mm); Color Code: Brown, Red
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Diameter: 0.186 x 0.328 in
Electrical Characteristics
- Max. Current: 12 Amps per Conductor at 25ºC
- Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C To +75°C
- Stationary Min.: 0.61 in (15 mm); Installation Min.: 0.61 in
- Max. Pull Tension: 152 lbs (68.9 kg)
- Bulk Cable Weight: 61 lbs/1000ft
Standards and Compliance
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.363 Revision Date: 09-07-2025
