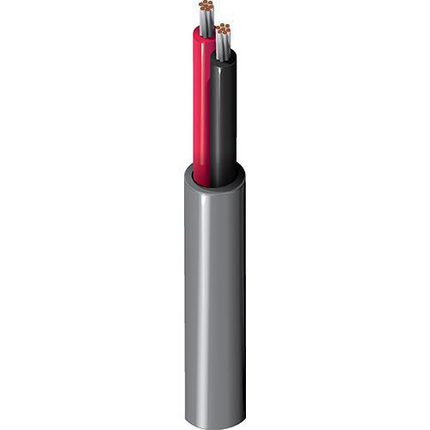

Belden 85220 368100 Electronic, 2 C #20 Str TC, ETFE Ins, ETFE Jkt
High Temperature Electronic, 2 Conductor 20AWG (7x28) Tinned Copper, ETFE Insulation, ETFE Outer Jacket
Ordering Details
- Manufacturer Part Number: 85220 368100
- Color: Clear, Transparent
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825211723
Supplied as one 100 ft Reel.
Product Overview
- Suitable Applications: extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
- Element: Conductor(s); Material: ETFE - Ethylene Tetrafluoroethylene; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.068 in (1.7 mm); Color Code: Black, Red
- Material: ETFE - Ethylene Tetrafluoroethylene; Nom. Thickness: 0.020 in (0.51 mm); Nom. Diameter: 0.185 in (4.70 mm)
- Overall Cable Diameter (Nominal): 0.185 in (4.70 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 11.2 Ohm/1000ft; Nom. Inductance: 0.186 µH/ft (0.610 µH/m); Max. Current: 6.2 Amps per Conductor at 30ºC
- Voltage Rating: 300 V
Mechanical Characteristics
- Operating: -30°C to +150°C
- Stationary Min.: 1.9 in (48 mm); Installation Min.: 1.9 in (48 mm)
- Max. Pull Tension: 25.2 lbs (11.4 kg)
- Bulk Cable Weight: 19 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1581 (VW-1), IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Tefzel is a trademark of Dupont.
History
- Update and Revision: Revision Number: 0.507 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
