Description
Belden 8470 0631000 Speaker Cable, 2 #16 Str ETP-TC, Unjacketed
Speaker Cable, 2 Conductor 16 AWG (19 x 29) Tinned Copper (High conductivity), PVC Insulation, Unjacketed
Ordering Details
- Manufacturer Part Number: 8470 0631000
- Color: Black and White Pair
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825208518
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

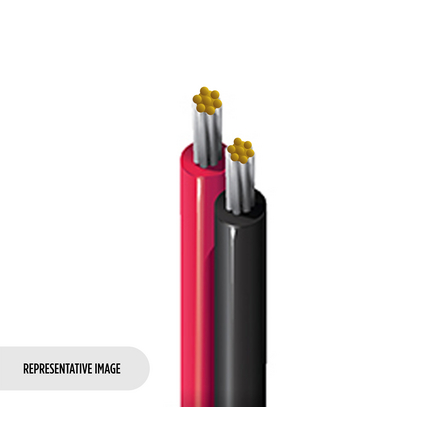

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Indoor Speaker Cable
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper (High Conductivity)
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.023 in (0.58 mm); Nom. Insulation Diameter: 0.105 in (2.67 mm); Color Code: Black, White
- Material: No Jacket; Nom. Diameter: 0.210 in (5.33 mm)
- Overall Cable Diameter (Nominal): 0.210 in (5.33 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 4.45 Ohm/1000ft; Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Max. Current: 18 Amps per Conductor at 30ºC
- Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -30°C to +105°C
- Stationary Min.: 2.1 in (53 mm); Installation Min.: 2.1 in (53 mm)
- Max. Pull Tension: 94 lbs (43 kg)
- Bulk Cable Weight: 24 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: UL 1581 (VW-1)
- AWM Compliance: AWM 1007
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.432 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
