Belden 8446 0601000 Electronic, 4+2 C #22+18 Str TC, PVC Ins, PVC Jkt, CMG - Chrome, 1,000 ft Reel

$3,480.99
SKU:
8446 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8446
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

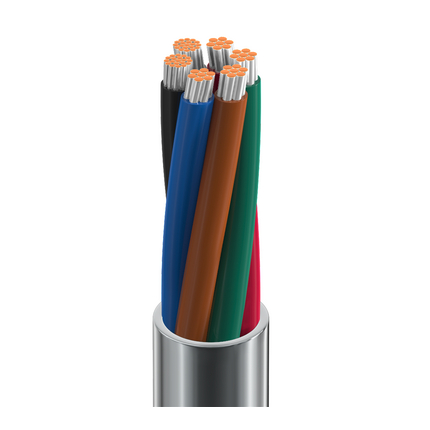

Belden 8446 0601000 Electronic, 4+2 C #22+18 Str TC, PVC Ins, PVC Jkt, CMG

Electronic, 4+2 Conductor 22+18AWG (7x30+19x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 8446 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825207559
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 4; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Red, Green, Brown, Blue
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.080 in (2.0 mm); Color Code: Black, White
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.236 in (5.99 mm)
  • Overall Cable Diameter (Nominal): 0.236 in (5.99 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 17.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 54 pF/ft (180 pF/m); Max. Current: 2.5 Amps per Conductor at 25ºC
  • Element: Conductor(s); Nom. Conductor DCR: 6.8 Ohm/1000ft (22 Ohm/km); Max. Current: 5.6 Amps per Conductor at 25ºC
  • UL Voltage Rating: 150 V (CMG), 150 V (AWM 2576)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 2.4 in (61 mm); Installation Min.: 2.4 in (61 mm)
  • Max. Pull Tension: 78 lbs (35 kg)
  • Bulk Cable Weight: 39 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2576
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.525 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
