Description

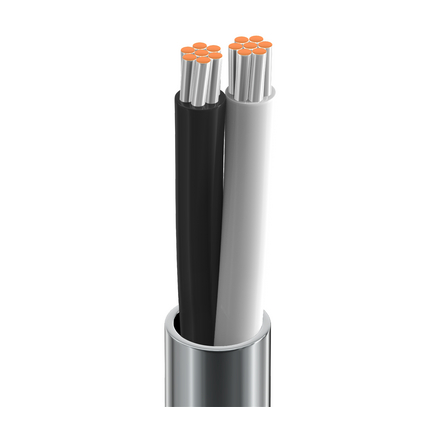

Belden 8461 0601000 Electronic, 2 C #18 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 2 Conductor 18AWG (7x26) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 8461 0601000
- Color: Chrome
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825208174
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 7x26; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.090 in (2.3 mm); Color Code: Black & White
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.027 in (0.69 mm); Nom. Diameter: 0.234 in (5.94 mm)
- Overall Cable Diameter (Nominal): 0.234 in (5.94 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Max. Current: 14 Amps per Conductor at 30ºC
- UL Voltage Rating: 300 V (CMG), 300 V (CL3)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 2.3 in (58 mm); Installation Min.: 2.3 in (58 mm)
- Max. Pull Tension: 45 lbs (20 kg)
- Bulk Cable Weight: 26 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 UL loading , FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, Article 800, CMG, CL3
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.520 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
