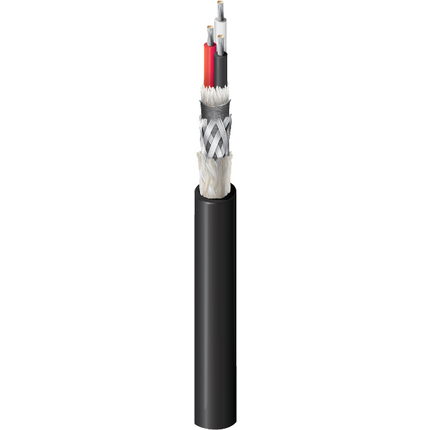

Belden 8406 010100 Microphone Cable, 3 Conductor 24 AWG, TC
24 AWG stranded (45x40) TC alloy conductors, EPDM rubber insulation, conductive textile wrap (100% coverage), TC braid shield (60% coverage), cotton serve, EPDM rubber jacket.
Ordering Details
- Manufacturer Part Number: 8406 010100
- Color: Black
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825206248
Supplied as one 100 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Manufacturer Status: Discontinued
Product Overview
- Suitable Applications: Low frequency microphone or musical instruments; Balanced analog audio
Product Life Cycle
- Life Cycle: Discontinued - the product is no longer manufactured
- Discontinuation Announcement Date: 1999-02-19
Construction Details
- No. of Elements: 3; Size: 24; Stranding: 45x40; Material: TCA - Tinned Copper Alloy
- Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.065 in (1.7 mm); Color Code: Black, Red, White
- Shield Type: Tape; Material: Textile (Conductive); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 60%
- Separator: Cotton Serve; Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.223 in
Electrical Characteristics
- Nom. Conductor DCR: 28.7 Ohm/1000ft (94.2 Ohm/km); Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Max. Current: 2.2 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 11.38 Ohm/1000ft (37.34 Ohm/km)
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- Operating: -40°C To +90°C
- Max. Pull Tension: 67 lbs (30 kg)
- Bulk Cable Weight: 33 lbs/1000ft (49 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
History
- Update and Revision: Revision Number: 0.397 Revision Date: 11-06-2026
