Belden 8404 060100 Microphone Cable, Star Quad, 4 C #20 Str TC, Rayon & 85% TC Braid, PVC Jkt
Microphone Cable, Star Quad, 4 Conductor 20 AWG (19 x 32) Tinned Copper (High conductivity), PE Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, PVC jacket
Ordering Details
- Manufacturer Part Number: 8404 060100
- Color: Chrome
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825206187
Supplied as one 100 ft Reel.

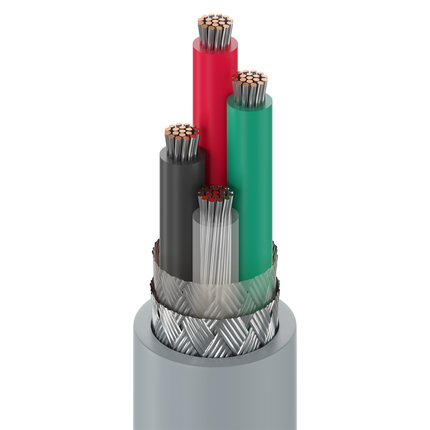

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 20 AWG; Stranding: 19x32; Material: TC - Tinned Copper (High Conductivity)
- Element: Conductor(s); Material: PE - Polyethylene; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.069 in (1.8 mm); Color Code: Clear, Black, Red, Green
- Shield Type: Braid; Material: Rayon®; Coverage: 85%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.252 in (6.40 mm)
- Overall Cable Diameter (Nominal): 0.252 in (6.40 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 10.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 23 pF/ft (75 pF/m); Nom. Characteristic Impedence: 45 Ohm; Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 3.1 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 3.23 Ohm/1000ft (10.6 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C
- Stationary Min.: 2.5 in (64 mm); Installation Min.: 2.5 in (64 mm)
- Max. Pull Tension: 100 lbs (45 kg)
- Bulk Cable Weight: 46 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 2094
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Overall cabling separator material: Rayon braid. Quad connection scheme: The two blue wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the two white wires (or remaining wires) are connected together to form the second conductor.
History
- Update and Revision: Revision Number: 0.498 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
