Belden 8403 060500 Microphone Cable, 3 C #20 Str TC, Rayon & 90% TC Braid, PVC Jkt
Microphone Cable, 3 Conductor 20 AWG (19 x 32) Tinned Copper (High conductivity), PE Insulation, Rayon Braid, 90% Tinned Copper Braid Shield, PVC Jacket
Ordering Details
- Manufacturer Part Number: 8403 060500
- Color: Chrome
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825206170
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

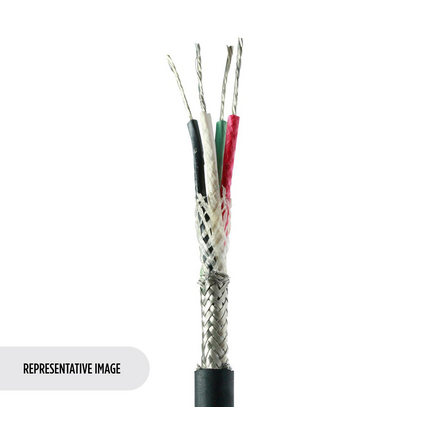

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Low frequency microphone or musical instruments; Balanced analog audio
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 20 AWG; Stranding: 19x32; Material: TC - Tinned Copper (High Conductivity)
- Element: Conductor(s); Material: PE - Polyethylene; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.069 in (1.8 mm); Color Code: Clear, Black, Red
- Shield Type: Braid; Material: Rayon®; Coverage: 90%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.033 in (0.84 mm); Nom. Diameter: 0.244 in (6.20 mm)
- Overall Cable Diameter (Nominal): 0.244 in (6.20 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 10.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 25 pF/ft (82 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 45 pF/ft (150 pF/m); Max. Current: 3.1 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 3.5 Ohm/1000ft (11 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -20°C to +80°C
- Stationary Min.: 2.4 in (61 mm); Installation Min.: 2.4 in (61 mm)
- Max. Pull Tension: 111 lbs (50.3 kg)
- Bulk Cable Weight: 41 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: VW-1
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.466 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
