Belden 83952 004500 Type KX Thermocouple, 1 Pr #20 Str, FEP Ins Yel, Red, Yellow FEP Jkt, 300V CL3P 200C PLTC SUN RES - Yellow, 500 ft Reel

$4,417.99
SKU:
83952 004500
Shipping:
Calculated at Checkout
Color:
Yellow
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
83952
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 83952 004500 Type KX Thermocouple, 1 Pr #20 Str, FEP Ins Yel, Red, Yellow FEP Jkt, 300V CL3P 200C PLTC SUN RES

Type KX Thermocouple, 1 Pair 20AWG (7x28) Chromel+Alumel, FEP Insulation Yel, Red Color Code, Yellow FEP Outer Jacket, CL3P 200C PLTC SUN RES

Ordering Details

  • Manufacturer Part Number: 83952 004500
  • Color: Yellow
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825206019
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

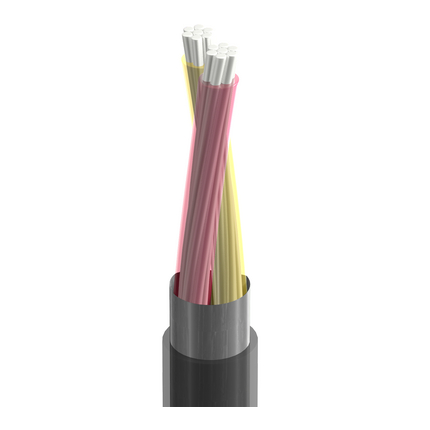

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 20; Stranding: 7x28; Material: Chromel & Alumel
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.058 in (1.5 mm); Color Code: Yellow and Red
  • Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.012 in (0.30 mm); Nom. Diameter: 0.145 in (3.68 mm)

Electrical Characteristics

  • Element: Chromel; Nom. Conductor DCR: 372 Ohm/1000ft
  • Element: Alumel; Nom. Conductor DCR: 150 Ohm/1000ft (490 Ohm/km)
  • Nom Outer Shield DCR: 2.09 Ohm/1000ft (6.86 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 200°C; Operating: -70°C To +200°C
  • Stationary Min.: 1.45 in (36.8 mm); Installation Min.: 1.45 in (36.8 mm)
  • Max. Pull Tension: 90 lbs (41 kg)
  • Bulk Cable Weight: 17 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum)
  • NEC / UL Compliance: Article 725, CL3P, PLTC
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISA MC 96.1-1982 Type KX

Product Notes

  • Notes: Chromel & Alumel = ""Chromel and Alumel are Hoskins Manufacturing Company trademarks.""

History

  • Update and Revision: Revision Number: 0.594 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
