Belden 83932 0041000 Type KX Thermocouple, 1 Pr #20 Sol, FEP Ins Yel, Red, Yellow FEP Jkt, 300V CL3P 200C PLTC SUN RES
Type KX Thermocouple, 1 Pair 20AWG (Solid) Chromel+Alumel, FEP Insulation Yel, Red Color Code, Yellow FEP Outer Jacket, CL3P 200C PLTC SUN RES
Ordering Details
- Manufacturer Part Number: 83932 0041000
- Color: Yellow
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825205944
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

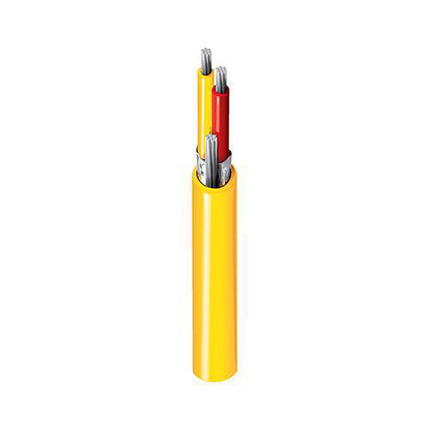

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 20 AWG; Stranding: Solid; Material: Chromel & Alumel
- Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.052 in (1.3 mm); Color Code: Yellow, Red
- Material: No Shield
- Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.012 in (0.30 mm); Nom. Diameter: 0.076 x 0.128 in
- Overall Cable Diameter (Nominal): 0.076 x 0.128 in
Electrical Characteristics
- Nom. Conductor DCR: 420 Ohm/1000ft
- Nom. Conductor DCR: 169 Ohm/1000ft (554 Ohm/km)
- UL Voltage Rating: 200 V
Mechanical Characteristics
- UL Temperature: 200°C; Operating: -70°C to +200°C
- Stationary Min.: 0.76 in (19 mm); Installation Min.: 0.76 in
- Max. Pull Tension: 575 lbs (261 kg)
- Bulk Cable Weight: 12 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: NFPA 262 (UL 910)
- NEC / UL Compliance: Article 725
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ISA MC 96.1-1982 Type KX
Product Notes
- Notes: Chromel & Alumel = ""Chromel and Alumel are Hoskins Manufacturing Company trademarks.""
History
- Update and Revision: Revision Number: 0.399 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
