Description
Belden 8281F J5C500 75 Ohm Analog Video Coax, RG-59, 21 AWG Str BC, Double 95% TC Braid, PVC Jkt. Flexible
75 Ohm Analog Video Coax, RG-59, 21 AWG (7x29) Bare Copper (Compacted) Conductor , PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, Flexible
Ordering Details
- Manufacturer Part Number: 8281F J5C500
- Color: Black, Vivid Matte
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825355465
Supplied as one 500 ft Reel.

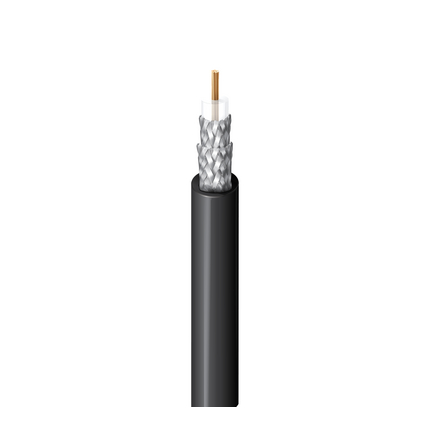

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Standard analog video
Construction Details
- RG Type: 59
- Size: 21 AWG; Stranding: 7x29; Nom. Diameter: 0.032 in; Material: BC-C - Bare Copper (Compacted)
- Material: PE - Polyethylene; Nom. Insulation Diameter: 0.193 in (4.90 mm); Color Code: White
- Layer: 1; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.304 in (7.72 mm)
- Overall Cable Diameter (Nominal): 0.304 in (7.72 mm)
Electrical Characteristics
- Frequency: 2 - 216 MHz; Min. Return Loss: 27 dB
- Frequency: 217 - 830 MHz; Min. Return Loss: 23 dB
- Frequency: 1 MHz; Nom. Attenuation: 0.3 dB/100ft
- Frequency: 3.6 MHz; Nom. Attenuation: 0.5 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.9 dB/100ft
- Frequency: 71.5 MHz; Nom. Attenuation: 2.5 dB/100ft
- Frequency: 135 MHz; Nom. Attenuation: 3.6 dB/100ft
- Frequency: 270 MHz; Nom. Attenuation: 5.1 dB/100ft
- Frequency: 360 MHz; Nom. Attenuation: 6 dB/100ft
- Frequency: 540 MHz; Nom. Attenuation: 7.4 dB/100ft
- Frequency: 720 MHz; Nom. Attenuation: 8.7 dB/100ft
- Frequency: 750 MHz; Nom. Attenuation: 8.9 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 10.5 dB/100ft
- Nom. Conductor DCR: 11.6 Ohm/1000ft; Nom. Outer Shield DCR: 1.7 Ohm/1000ft (5.6 Ohm/km); Nom. Capacitance Cond-to-Shield: 20.5 pF/ft (67.3 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 66%
- Voltage Rating: 2900 V
Mechanical Characteristics
- Operating: -20°C to +60°C
- Installation Min.: 3.0 in (76 mm)
- Max. Pull Tension: 168 lbs (76.2 kg)
- Bulk Cable Weight: 61 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- CPR Compliance: CPR Euroclass: Eca
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Compacted copper combines the Impedance uniformity of solid conductors and the ""nick-resistance"" of stranded conductors.
History
- Update and Revision: Revision Number: 0.480 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
